FitSwitch 48 Full PoE

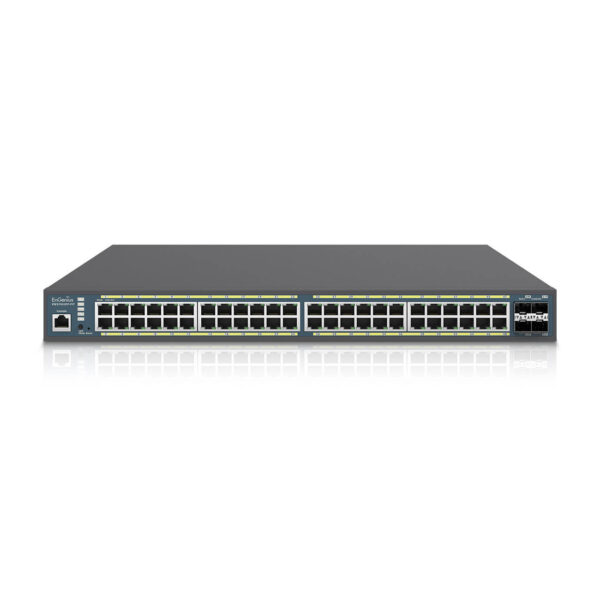

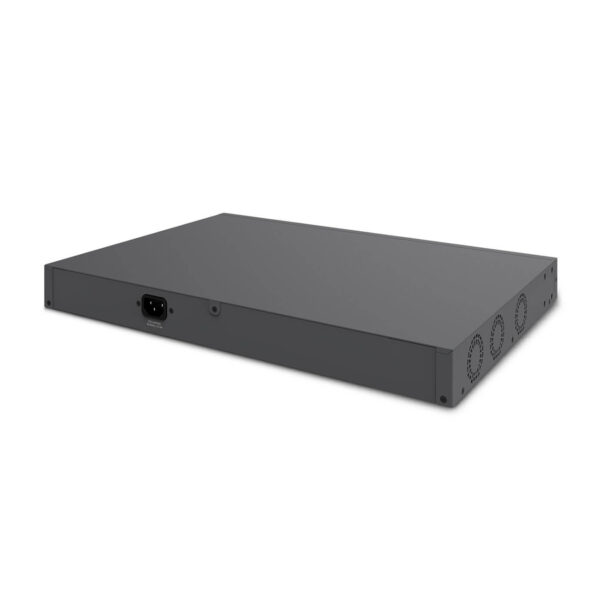

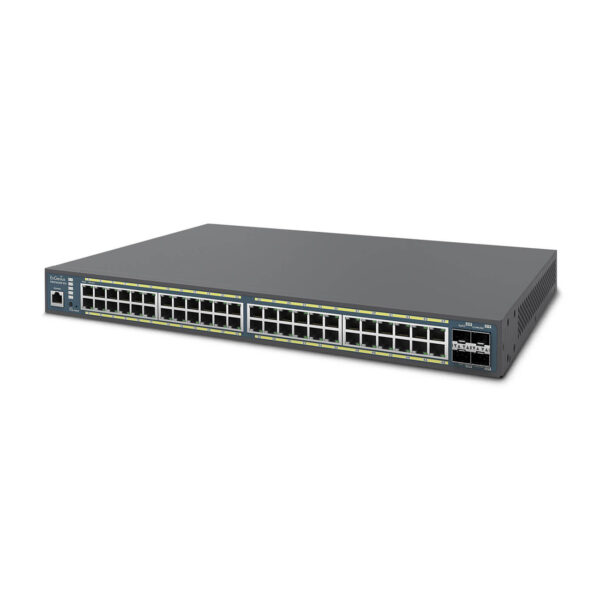

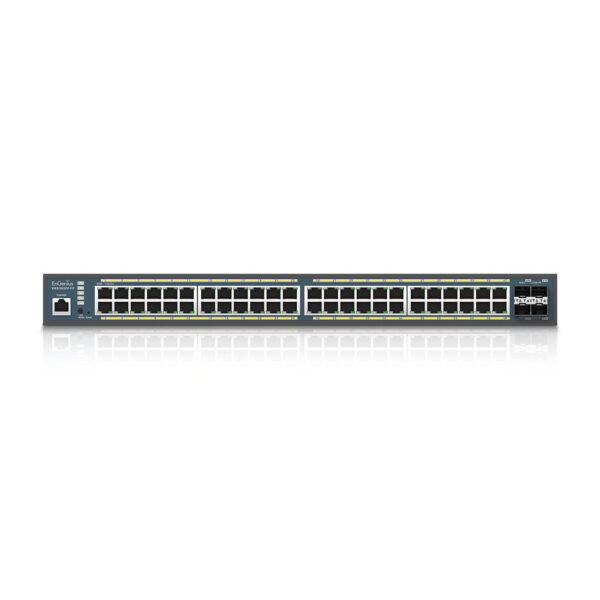

EWS7952FP-FIT FITSwitch Managed 48-Port Gigabit 740W PoE+ Switch with 4 SFP Ports

EWS7952FP-FIT

Product Highlight

EnGenius FITSwitch Managed Layer 2+ Switch, EWS7952FP-FIT, offers 48 Gigabit PoE+ ports, 4 Gigabit SFP uplink ports, and a 740W budget. It provides zero-touch provisioning, centralized cloud management, and supports EnGenius FIT cloud, FITCON on-premises, or standalone management options. With advanced security features and Voice-VLAN, it maximizes network efficiency and ensures peak performance for SMBs.

  • 48x GE PoE+ ports for high-speed connections
  • 4x SFP uplink ports for bandwidth-intensive applications
  • 48x 802.3 at/af PoE+ ports with 740W PoE budget
  • Zero touch provisioning centralized cloud management, and visualized monitoring
  • Hybrid cloud switch supports flexible management options such as EnGenius FIT cloud, FITCON on-premises or standalone
  • Robust security that supports Port-based / MAC-based ACL Storm control, DHCP Snooping, DOS Attack Prevention, 802.1X & RADIUS Authentication, and more
  • Optimized for quality voice and video traffic with Voice-VLAN feature

Downloads

File NameĐịnh dạng
download icon Datasheet_Fit-Managed-Switch Data Sheet
download icon Datasheet_Fit-Management_v14 Data Sheet
download icon EnGenius Fit Solution Brochure Brochure
download icon fitswitch-48-full-poe_ews7952fp-fit_QSG_EN Quick Guide

Technical Specifications

Port Standards

802.3 10Base-T Ethernet
802.3u 100Base-TX Ethernet
802.3ab 1000Base-T Ethernet
802.3x Full-Duplex Flow Control

Network Port – Gigabit Ethernet Ports

48x GE Ports

Network Port – SFP Ports

4x SFP

Switching Capacity

104Gbps

SDRAM

256MB

Flash Memory

32MB

PoE Capable Ports

Ports 1-48

Total PoE Budget

740W

Power Source

100 to 240 VAC, 50/60Hz

Physical Interface

System Indicators

Power LED
Fault LED
PoE Max LED
LAN Mode LED
PoE Mode LED

Port Indicators

Link/Activity/Speed (per Ethernet port)
Link/Activity/Speed (per SFP slot)

L2 Features

Network Management

EnGenius FITCloud
FITCON
Local Web GUI

MAC Address Table

16K

Jumbo frame size

9K

Multicast Group

Max 256 groups

MLD Snooping

MLD Snooping: v1

QoS-number of Priority Queues Supported

Queue 8

QoS Trust Mode

Cos/802.1p
DSCP
CoS/802.1p-DSCP

Scheduling Mechanism

Strict / WRR/ Strict + WRR

Bandwidth Control

Port-based bandwidth control (Ingress/Egress)

Port Security

Max. 256 Entries

Access Control List (ACL)

MAC Based ACL
IPv4/IPv6 Based ACL
ACL Binding
Time base ACL

Web Graphical User Interface (GUI)

HTTP IPv4 / IPv6
HTTPS IPv4 / IPv6

SSL Certificate

Certificate/Key Import

SNMP

SNMP v1/v2c/v3 Support

RMON

RMON 1,2,3,9

System Time

Time Setting/Daylight saving

Common L2 Features

802.1d Spanning tree
Loopback Detection
Multicast Filitering
IGMP Multicast Forwarding
IGMP Snooping
MLD Multicast Forwarding
802.1Q VLAN tagging
802.3x flow control
802.3ad Link Aggregation
IPv4 DHCP Relay
IPv4 DHCP Snooping
IPv4 DHCP Snooping Source MAC Address Check-up
ARP Inspection
ARP Packet Validation (additional validation checks)
Voice VLAN
Port-based VLAN
Protocol-Based VLAN
CoS Mapping
802. 1X Radius Authentication Protocol
IPv4 Settings
IPv6 Settings
IEEE 802. 3az Energy Efficeient Ethernet (EEE)
Command Line Interface (CLI)
SSH Server
Telnet Server
TFTP Client
Configuration Upgrade/ Backup
Simple Network Time Protocol (SNTP)
SYSLOG
802.1d Spanning tree

L3 Features

Multiple IP Interface

20 IPv6 address

ARP Table

Max. 192 ARP entries

Static ARP

Static 192 ARP entries

IPv4 Static Route

Max. 63 entries

IPv6 Static Route

Max. 21 entries
